Movement Limits Tim's Host

How far can you go?

A question coming up periodically is: how far can you get in one turn? Or, more interesting: will I make this in one turn?

Since this is not obvious from movement formulas (due to the rounding involved), I have simulated the problem. I used HOST 3.22.046, which is probably the most-widely used HOST version today. As far as I know, the movement algorithm has been unchanged since HOST 3.22.026.

Basic Ideas

Movement uses relative coordinates. When you move from (1200,1300) to (1250,1320), you're moving 50 ly on the X axis (east), and 20 ly on the Y axis (south). When you move from (2512,1991) to (2562,2011), you're also moving (+50,+20), so you will take the same relative path, burn the same amount of fuel, and take the same number of turns. Therefore, it suffices to talk about relative movement. Since you can move at most 81 ly each turn, it suffices to simulate relative movement of about +/-81 ly. This is what I did.

Movement can have two results:

  • You can reach your waypoint exactly. This is the normal case.
  • You can miss your waypoint because it's too far. Normally, you don't want that. However, it is possible that by ordering your ship to go far, it may end on a spot you cannot reach normally due to rounding effects. Thus, this is the trick that will save your ass once in a lifetime.

There are three interesting figures:

  • Maximum safe distance: this is the number you'll want to learn: all points that are closer than this can be directly reached. Always.
  • Maximum exact distance: some points farther than the safe distance (but not all) can be reached as well.
  • Maximum inexact distance: some points even farther can be reached by setting an inexact waypoint. You will not reach it, but still end farther away than you could regularily.

Warp 9 using a Regular Engine

  • Maximum safe distance: 81.57 ly.
  • Maximum exact distance: 81.61 ly using a displacement of (66,48).
  • Maximum inexact distance: 81.84 ly using a displacement of (67,53). The ship will move (64,51).

Points outside safe distance which are reached exactly:

Waypoint
Displacement
Distance
48,66 81.61 ly
66,48 81.61 ly

Points which are reached inexactly:

Waypoint
Displacement
DistanceReached PointDistance
16,8283.55 ly 16,80 81.58 ly
24,7982.57 ly 24,78 81.61 ly
27,7882.54 ly 27,77 81.60 ly
43,7283.86 ly 42,70 81.63 ly
53,6785.43 ly 51,64 81.84 ly
54,6685.28 ly 52,63 81.69 ly
66,5485.28 ly 63,52 81.69 ly
67,5385.43 ly 64,51 81.84 ly
72,4383.86 ly 70,42 81.63 ly
78,2782.54 ly 77,27 81.60 ly
79,2482.57 ly 78,24 81.61 ly
82,1683.55 ly 80,16 81.58 ly

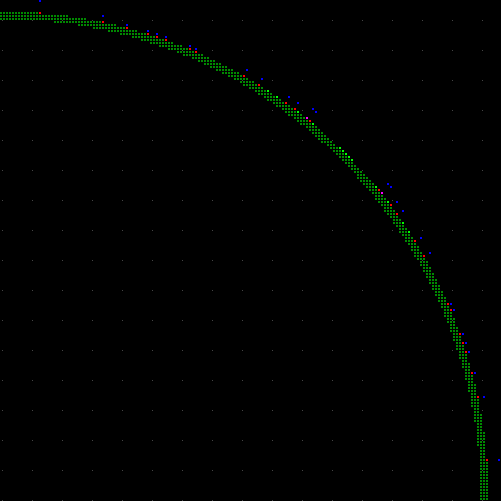

How to interpret the diagram

The diagram contains all reachable points in green or red color. Note that for simplicity points closer than 79 ly have been left out. Those are always reached. The gray dots mark a 10 ly grid.

greenPoints reached exactly
greenPoints reached exactly, and within safe distance
red Points reached inexactly
red Points reached inexactly, at maximum possible distance
blue These are the points you use as a waypoint to reach the corresponding inexact point

Warp 9 using a Gravitonic Engine

  • Maximum safe distance: 162.505 ly.
  • Maximum exact distance: 162.659 ly using a displacement of (117,113).
  • Maximum inexact distance: 162.89 ly using a displacement of (130,104). The ship will move (127,102).

Points outside safe distance which are reached exactly:

Waypoint
Displacement
Distance
89,136 162.53 ly
92,134 162.54 ly
99,129 162.61 ly
104,125 162.61 ly
113,117 162.66 ly
114,116 162.64 ly
115,115 162.63 ly
116,114 162.64 ly
117,113 162.66 ly
125,104 162.61 ly
129,99 162.61 ly
134,92 162.54 ly
136,89 162.53 ly

Points which are reached inexactly:

Waypoint
Displacement
DistanceReached PointDistance
13,166166.51 ly 13,162 162.52 ly
34,161164.55 ly 34,159 162.59 ly
42,158163.49 ly 42,157 162.52 ly
49,156163.51 ly 49,155 162.56 ly
52,155163.49 ly 52,154 162.54 ly
55,154163.53 ly 55,153 162.59 ly
63,151163.62 ly 63,150 162.69 ly
65,150163.48 ly 65,149 162.56 ly
82,143164.84 ly 81,141 162.61 ly
87,140164.83 ly 86,138 162.60 ly
96,134164.84 ly 95,132 162.63 ly
99,132165.00 ly 98,130 162.80 ly
104,130166.48 ly 102,127 162.89 ly
105,129166.33 ly 103,126 162.74 ly
129,105166.33 ly 126,103 162.74 ly
130,104166.48 ly 127,102 162.89 ly
132,99 165.00 ly 130,98 162.80 ly
134,96 164.84 ly 132,95 162.63 ly
140,87 164.83 ly 138,86 162.60 ly
143,82 164.84 ly 141,81 162.61 ly
150,65 163.48 ly 149,65 162.56 ly
151,63 163.62 ly 150,63 162.69 ly
154,55 163.53 ly 153,55 162.59 ly
155,52 163.49 ly 154,52 162.54 ly
156,49 163.51 ly 155,49 162.56 ly
158,42 163.49 ly 157,42 162.52 ly
161,34 164.55 ly 159,34 162.59 ly
166,13 166.51 ly 162,13 162.52 ly

Can you go farther?

A number of things can allow a ship to go farther:

  • Hyperdrive and Chunnel, of course.
  • Gravity wells.
  • Ion storm surfing.
  • Wormholes and jumpgates of all kinds.

These have not been discussed here, because they are well-known, trivial, unpractical, and add-on dependant, respectively. However, it helps to keep these in mind when you're asking yourself will my enemy make this in one turn?

Colophon

This analysis was first published in news:alt.games.vga-planets article <busg0k.1kg.1@stefan.msgid.phost.de> in January 2004. It has been prepared anew from the original data. You can download the data and scripts to produce it here (80k ZIP).

Inevitable ad block: PCC uses actual movement formulas to optimize waypoints. When you shift-click at a planet, it will use all applicable points, including inexact ones, to find the fastest possibility.
